 Juno-60 -- Roland sintetizzatore polifonico 6 voci -- programmabile -- DCB
Juiter-6 Roland

Simile al Juno 6 ma con 56 memorie patch. Tastiera a 5 ottave. Interfaccia di scambio con altre periferiche Roland DCB. 6 oscillatori digitali (DCO)
 Catalogo Sintetizzatori Roland Anni 80'

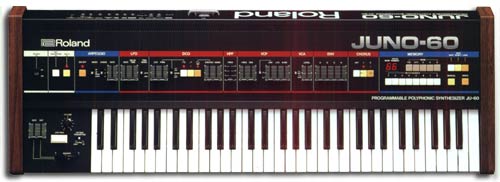

 Roland Juno-60 -- six voice polyphonic synthesizer

•The Roland Juno-60 is a programmable six voice polyphonic synthesizer with 56 Patch Memories and a 61 note, five octave keyboard. Even the built in Stereo Chorus is Programmable and direct digital interface is accomplished by means of the DCB Digital Interface.

The DCB can be used to link two Juno-60's together for layered effects or to hook the instrument to a MC-4 MicroComposer, CMU-800 Compu-Music or a variety of ancillary equipment including the MD-8 MIDI to DCB Interface which will make the Juno MIDI compatible.

• Cassette Interface for storing patch information and digital control features like Arpeggio, Key Transpose, and Patch Shifting via a DP-2 footswitch make the Juno-60 a standout performer in any situation.

• Six DCO's with Combinable Waveforms give the Juno sound generating purity and versatility that is totally uncompromised and any mode, manual, LFO, or Envelope can be used to control the Pulse Width.

A sub-oscillator produces a square wave that is one octave lower than the DCO and may be mixed to any degree for a fuller richer sound.

• The Juno also offers a High Pass Filter that is a distinct advantage in creating realistic string and clavicord patches.

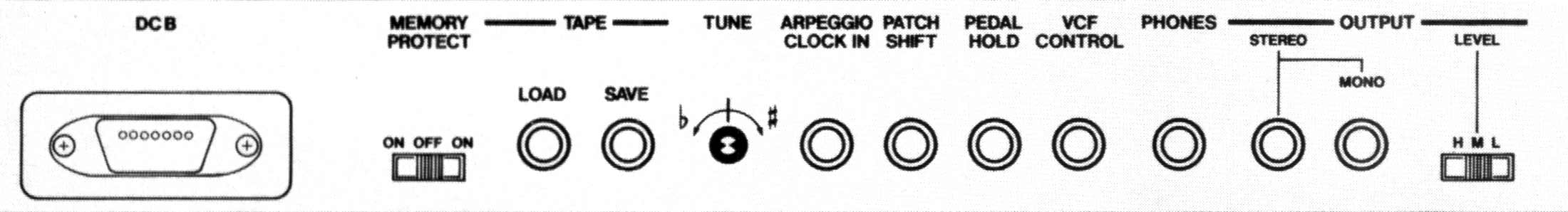

Roland Juno 60 rear panel connections rear panel

• Keyboard: 61 keys ( 5, octaves, C-scale)

• DCO: Waveforms (fTiJ, /I , SUB ), LFO MOD, PWM MOD, PWM mode switch (LFO/manual/ENV), Sub OSC level, Noise level,

• HPF: Cutoff frequency (off/l / 2/3)

• VCF: Cutoff frequency, Resonance, ENV polarity (l-%,l.r-r), ENV MOD, LFO MOD, Key-board follow (0 ~ 100%)

• VCA: Control signal select switch, VCA level

• ENV: Attack time (1 ms 3 s), Decay time (2 ms ~ 12 s),Sustain level (0 --100%), Release time (2 ms ~ 12 s)

• LFO: Rate (0.3 Hz ~ 20 Hz), Delay, Trigger mode (auto/ manual) • Arpeggio: Arpeggio on/off, Mode (up/ up & down/down), Range (1/2/3), Rate (1.5 Hz ~ 50 Hz)

• Key transpose button

• Hold button

•Chorus buttons (off, I, II) • Memory: Patch number button x 8, Bank number button x 7, Manual button, Write button, Save button, Verify button, Load button, Patch & Bank number display

• Controllers: Octave transpose (down/normal/up), Bender lever, Bender sensitivity (DCO, VCF), Volume

Rear panel

• Jacks: Output (mono, stereo), Phones, VCF control, Pedal hold, Patch shift, Arpeggio clock in, Tape (save, load), DCB

• Switches: Ouput level select (HIM/L), Memory protect (on/off/on) • Control: Tune (±50 cent)

• Dimensions: 1060(W) x 113(H) x 378(D) mm (41.7" x 4.45 ' x 14.9") • Weight: 12 kg (26.4 lb.)

• Accessory: 2,5 m connection cord x 2

• Options: KS-2 stand, FV-200 foot volume, DP-2 pedal switch, CB-JUNO leatherette case
