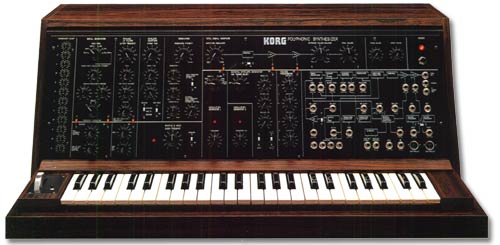

The most completely equipped single-system polyphonic synthesizer designed for high playability and flexible control.

SPECIFICATIONS

CONTROL SECTION KEYBOARD: F E 48 Keys

•SIGNAL GENERATORS: Waveform ,PWM Intensity. Fine Tuning (t100 Cents). Coarse Tuning (±1/2 OCT), Scale (16', 8', 4', 2'), FM Switch, FM Reverse Switch, Internal FM Intensity, External FM Intensity DYNAMIC LOW-PASS FILTERS: Cut-off Frequency, Peak, Keyboard Filter Balance, Expand, FcM Switch, Internal FcM Intensity, External FcM Intensity

•ENVELOPE MODIFIERS: Attack Time, Decay Time, Sustain Level, Release Switch, Hold Switch

•RESONATORS: Resonance Intensity, Peak Frequency x 3

•TOTAL SIGNAL MODIFIERS: AM Intensity, Ensemble Switch, VCA-1 Modulation Switch, VCA-2 Modulation Switch, Keyboard Volume Balance, Final Volume

•MODULATION GENERATOR-1: Waveform (Pink Noise, White Noise), Frequency (0.1 Hz— 1 kHz) •MODULATION GENERATOR-2 ( /\ ): Frequency (0.3 Hz—10 Hz)

•SAMPLE & HOLD: Clock Frequency, Synchro Switch

•GENERAL ENVELOPE GENERATOR: Keyboard Trigger Select, Delay Time, Attack Time, Release Time, Auto Switch, Reverse Switch

•VOLTAGE PROCESSERS x 2: Limiter A x 2, Limiter B x 2 •MANUAL CONTROLLERS: Control Wheel, Momentary Switch •OTHERS: Headphone Volume, Direct Volume «PATCHING SECTION),

•SELECT SWITCH: Modulation VCA Input Select Switch, VP-1 Input Select Switch

•INPUTS: SG (FM Input, PWM Input), DLPF (Cut-off Frequency Input), EM (A.T Control Input, Release Switch Input), VCA-1 (Control Input), VCA-2 (Control Input), MVCA (Control Input), S/H (Signal Input). MG-1 (Frequency Control Input). GEG (Trigger x 2), VP-1, VP-2 (Voltage Inputs x 2, Controller Inputs x 2)

•OUTPUTS MG-1 Output x 1, S/H Output x 1. MG-2 Output x 1, GEG Outputs x 2, Trigger Outputs x 2 (Single. Multiple), VP-1 Output x 1. VP-2 Output x 1. Control Wheel Output x 1, Momentary Switch Output x 1, Signal Outputs x 3 (Final. Direct, Headphone)

•JUNCTIONS (4 x 1) *IMPEDANCE (Input) Digital Input 1 k). Analog Input 10 kohm

•IMPEDANCE (Output. Modulation Signal Output 1 kohm.Control Wheel Output 25kohm

•SIGNAL OUTPUT IMPEDANCE Final Output 2.5 kohm (2 Vp-p). Direct Output 2 5 kohm (2 Vp-p). Headphone Output 200 U

•DIMENSIONS 820 (W) x 360 (H) x 528 (D) mm

•WEIGHT' 30 kg

•ACCESSORIES: Patch Cords = 25 cm x 2. 35 cm x 2. Connection Cord

•POWER CONSUMPTION: Voltage (Local Voltage, 50/60 Hz). Wattage (30 W)
