KORG MONO-POLY MP-4	KORG - sintetizzatore4 di 7
		sfoglia

Marca

KORG - MONO-POLY MP-4

MONO-POLY MP-4 KORG

Generazione controllo sintesi audio: Analogica

Tastiera: 44 tasti; FA-DO; Mono; Poly a 4 voci

Struttura del canale di voce: VCO x4; VCF; VCA; EG; MG1; MG2

Selezioni forma d'onda: Triangolare; Rampante; PW; PWM Controlli di pitch: Detune; Transpose Sezioni modulari: VCO, VCF; VCA; MG; Effects; Arpeggiator; Key assign

Funzioni sequenziali: Arpeggiatore (range- mode- arpeggio)

Segnalazione funzioni: LED

Ampllficazione e diffusione acustica: Esterna

Uscite audio: Trigger out; CV out, Phones;

Signal Ingressi per controlli esterni: Arpeggio trigger in; Portamento; VCF; VCO

Alimentazione: Rete

Dimensioni: 744x450x144mm

-------------------------------------------------------------------------

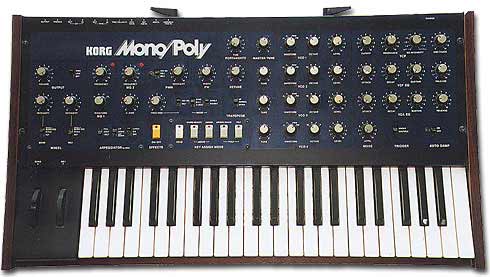

4-VCO Computer-Controlled Lead Synthesizer.
Playable Monophonically and Polyphonically. With Arpeggiator,
Pre-settable Sync and Cross-Mod Effects and Chord Memory.

Designed for stunning lead synthesizer sounds as well as polyphonic playing, the new Korg Mono/poly is a 4-VCO computer-controlled synthesizer equipped with an array of advanced, performance-oriented features and effects unavailable in any competing units.

The Korg Mono/poly offers three different Keyboard Assign modes: Unison, for fattest 4-VCO lead sounds; Poly, for 4-note polyphonic capabilities; and Unison/Share which automatically swtiches between Unison and Poly modes by sharing VCOs among the notes played. Also features versatile Hold and Chord Memory functions, which turns intervals and chords into incredible "layered" soloing sounds.

The full featured Arpeggiator offers three different patterns, three octave extensions and a unique "Latch" mode which automatically memorizes and sequences chords played at any speed desired.

Each VCO features independent Octave, Waveform and Level controls, for ultimate flexibility. The newly developed 24 dB/oct VCF offers continuously variable keyboard tracking (0-150%) and forward/reverse enveloping from its own independent ADSR generator.

Two separate Modulation Generators allow the user to set up two modulations at once. Ant the "human engineered" Effects Section features "One-Touch" presettable Sync and Cross-Mod effects, along with Polyphonic Portamento, for the most explosive sounds capabilities.

SPECIFICATIONS

• KEYBOARD: 44 Keys (F - C)
• VCOx4: Waveform (A, N , PWM, PW) Octave Selector (16', 8', 4, 2'), Level, Tuning (Master Tunex1, ±50 Cents Or More, TuneX3, ±50 Cents or More) VCF: Cutoff Frequency Adjustment,Resonance Adjustment, Envelope Generator Modulation Sensitivity Adjustment, Keyboard Tracking (0~150%) .VCF EG: Attack Time, Decay Time, Sustain Level, Release Time
• VCA EG: Attack Time Decay Time, Sustain Level, Release Time
• NOISE (White Noise): Level
• TRIGGER MODE: Single, Multiple
• AUTO DAMP: On, Off
• MG-1: Waveform Frequency (Below 0.1Hz to above 20Hz)
• MG-2: Waveform (A) Frequency (Below 0.1Hz to above 30Hz) •PWM: Sensitivity Adjustment, Mode (VCF EG, MG-1, MG-2) .PW: Pulse Width Adjustment
• PORTAMENTO: Time Adjustment .DETUNE: VCO4 (-35 +35) when VCO2 Is (+35.-35) .TRANSPOSE: Up, Normal, Down .
• EFFECT: On, Off, Mode (Synchro, Cross-Modulation, Synchro+Cross-Modulation), Connection (Single, Double), Frequency Modulation (VCF EG, MG-1), Frequency Modulation Sensitivity Adjustment, Cross-Modulation sensitivity adjustment.
• KEY ASSIGN MODE: Poly, Unison/Share, Unison, Chord Memory, Hold .ARPEGGIATOR: Range (Full, 2oct, 1oct), Mode (Up, Down, Up/Down), Arpeggio (Off, On, Latch)
• WHEELx2: Bend (Sensitivity
adjustment, VCO 1/Slave VCO, Pitch, VCF) MG-1 (Sensitivity Adjustment, VCO1/Slave VCO, Pitch, VCF) •OUTPUTS: Level Selector (Off, Low, High), Volume •INPUT JACKS: Arpeggio Trigger In ( a ), Portamento (a ), VCF fcM in (-5V~+5V), VCO FM In (-5V~+5V), Trigger In, CV In (Oct/V)
• OUTPUT JACKS: Trigger Out, CV Out (Oct/V), Headphone, Output .TRIGGER POLARITY SWITCH: 7w
• DIMENSIONS: 744 (W)x450 (D)x144 (H) mm
• WEIGHT (H) mm WEIGHT: 1 kg.
• ACCESSORIES: Connection Cord, Sound Sample Tape
• POWER CONSUMPTION: Voltage (Local Voltage 50/60Hz),
• Wattage (28W)

Prezzo di listino al pubblico anno 1985 da catalogo.

Prezzo: L. 1.410.000
