KORG - EX-800




  KORG   EX-800

  EX-800 KORG

  Generazione controllo sintesi audio: Digitale

Struttura del canale di voce: DCO 1; DCO 2; VCF; DEG 1; DEG 2; DEG 3; MG

Selezioni forma d'onda: Rampante; Variabile Controlli di pitch: Detune (-20%); Tune (¦50%); Octave transposer Sezioni moduIari: DCO 1-2; VCF; DEG 1-2-3; MG; Midi; Programmer; Sequencer Presets timbrici: 64 Programmazione: Tramite pads numerico/funzionali Funzioni di program mazione: Creazione e immagazzinamento; 64 timbri modificabili e richiamabili; Sequenze

Funzioni sequenziali: Sequencer 256 note; Velocita' variabile

Segnalazione funzioni: LCD

Amplificazione e diffusione acustica: Esterna

Ingressi audio: Tape; Program UP

Uscite audio: Signal; Headphones; Tape Dispositivi di interfaccia: Tape; Midi (in-out)

Alimentazione: AC

Dimensioni: 404x222x645mm

Accessori: Adattatore AC; Cassetta presets; Cavo 5 pin DIN

Note: Modulo synth a 8 voci pilotabile da qualsiasi strumento Midi compatibile

--------------------------------------------------------------------

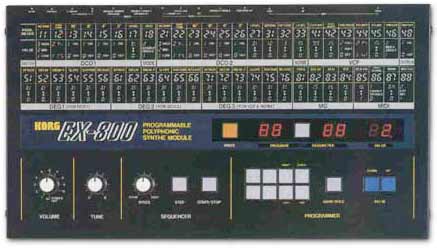

EX-800 PROGRAMMABLE POLYPHONIC SYNTHE MODULE

Programmable Polyphonic Synth-Module Works with All MIDI Keyboards and MIDI Control Devices.

The EX-800 is a programmable synth-module that works as a sound source for any MIDI key-board (DW-6000, Poly-800, RK 100, etc.) or other MIDI control device such as computer or synthesizer.

For real versatility, it responds to eight kinds of MIDI data: key data, pitch bends, modulation, sequencer clock, pro-gram change, volume, computer dump, and active sensing.

The MIDI THRU jack allows series connection with additional EX-800s or other MIDI units. This is an easy way to add extra musical power to your system with but a small investment.

The EX-800 has eight voices, 64-program memory, and a built-in 256-step polyphonic sequencer. Dual DCOs and triple ADBSSR DEGs permit rich tonal variation and flexible envelope shaping. There's even a tape interface.

SPECIFICATIONS

VOICE:8 Voice (WHOLE mode), 4 Voice (DOUBLE mode)
DCO1: Octave (LOW, MID, HIGH), Waveform (N, r ), 16', 8', 4', 2' (ON/OFF), Level (0—31) DCO2: Octave (LOW, MID, HIGH), Waveform (N, n), 16', 8', 4', 2' (ON/OFF), Level adjustment, Interval (0—12 semitones), Detune ( — 20 cent MAX)
DCO Mode: (WHOLE, DOUBLE)
NOISE: Level (0—15), (White noise)
VCF: Cutoff Frequency (0—99), Resonance (0—15), Keyboard Track (OFF, HALF, FULL), EG Intensity (0—15), EG Polarity , Trigger mode (for DEG 3 only), (SINGLE, MULTI)
CHORUS: ON/OFF
DEG1 (FOR DC01): Attack time, Decay time, Break Point level, Slope time, Sustain level, Release time (ALL 0—31)
DEG2 (FOR DCO2): Attack time, Decay time, Break Point level, Slope time, Sustain level, Release time (ALL 0—31)
DEG3 (FOR VCF & NOISE):
Attack time, Decay time, Break Point level. Slope time, Sustain level, Release time (ALL 0—31)
MG: Frequency, Delay time, DCO intensity, VCF intensity (ALL 0—15)
MIDI: Receive Channel (1—16), Program Change (ENABLE/DISABLE), Sequencer Clock (INT, EXT) Bend (INTENSITY)

TUNE: ± 50 cents
KEY DATA RECEIVABLE RANGE: C1—C6/61 Keys (36—96 at MIDI)
POWER: OFF, Master VOLUME
SEQUENCER: START/STOP, STEP, SPEED (Slow—Fast)
PROGRAMS: 64 (11 to 88)
PROGRAMMER: Number select buttons (1—8), PROGRAM/PARAMETER, BANK HOLD, UP, DOWN, WRITE switches
DISPLAY: Program Number, Parameter Number, Parameter Value, Bank hold indicator, Edit indicator
TAPE INTERFACE: Save, Load, Verify, Cancel
INPUT JACKS: FROM TAPE (HIGH/LOW), PROGRAM UP
OUTPUT JACKS:Output (R, L/MONO), HEAD-PHONES, TO TAPE
TAPE SWITCH: ENABLE/DISABLE
WRITE SWITCH: Program (ENABLE/DISABLE), Sequencer (ENABLE/DISABLE)
MIDI JACK: IN, OUT, THRU

DC 9V: AC adaptor jack (300mA minimum; use only recommended KORG adaptor)

DIMENSIONS: 404(W) x 222.5(D) x 64.5(H)mm

WEIGHT: 2.6kg

ACCESSORIES: AC adaptor, Cassette tape of Factory Preload Programs, Rack mount adaptor (x 2), Screws (x 4) 5 pin DIN cord

OPTIONAL ACCESSORIES

PEDAL SWITCH PS-1
HEADPHONES KH-1000
SOFT CASE
MIDI CABLE 7m/10m/12m)
SYNC/MIDI CABLE (1.5m/3m/5m)
SYNC/ MIDI CABLE SET (1m+0.5m)



  Prezzo di listino al pubblico anno 1985 da catalogo.

Prezzo: L. 946.000
