| KORG DW 6000 | KORG
- sintetizzatore5 di 7 |
|
| |
|
sfoglia | ||||
 |
|||||||||||||
|
|
|||||||||||||
|
|

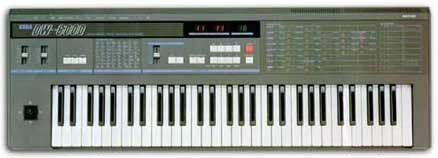

KORG - DW 6000 |
|
|||||||||||
|
|||||||||||||
|
|
|||||||||||||
| DW 6000 KORG | |||||||||||||
| Generazione controllo sintesi audio: Digitale; Analogica Tastiera: 61 tasti DO - DO; 6 voci Struttura del canale di voce: OSC 1; OSC 2; VCA; VCF; EG Selezioni forma d'onda: Sistema DWGS; 1-8 Controlli di pitch: Tune ¦ 50%; Octave transposer; Interval Sezioni modulari: Parametri generazione suoni; Key assign; Programmer Presets timbricl: 64 Programmazione: Tramite pads numerico/funzionali Funzioni di programmazione: Correzione presets; Creazione nuovi timbri; Programmazione key assign e portamento Capacita' di memoria: 2 chips da 256K bit rom Miscelazione audio: Stereo Segnalazione funzioni: LED; LCD Amplificazione e diffusione acustica: Esterna; Stereo Ingressi audio: Tape Uscite audio: Signal; Phones; Tape Ingressi per controlli esterni: Damper; Portamento; Program Up Dispositivi di interfaccia: Tape in-out Alimentazione: AC Dimensioni: 998x338x101 mm Accessori: cavo alimentazione; Cavo connessione; Cassetta dati Note: Utilizza il sistema DWGS (Digital Wave Form Generator System) che dispone di 8 forme d'onda codificate digitalmente con simulazione strumenti reali ottenuta mediante sintesi additiva; I due oscillatori possono essere mIxati per ottenere suoni piu' complessi --------------------------------------------------------------------------------------------- DW-6000 PROGRAMMABLE DIGITAL WAVEFORM SYNTHESIZER Digital Quality with Analog Speed & Convenience. Newly Developed DWGS Digital Sound plus Analog VCF, VCA and Dual DEGs. 6-Voice Polyphonic Synth with MIDI, Portamento, 64-Program Memory. This programmable 6-voice poly-phonic synthesizer features Korg's new DWGS, the "Digital Waveform Generator System." It has two digital oscillator modules with a selection of eight waveforms each. These waveforms are stored in two 256Kbit ROM chips. Unlike the simple sawtooth and square waves of conventional synthesizers, these waveforms are digitally encoded recordings having complex harmonic structures for realistic sound creation. On the other hand, the VCF and VCA are analog for easy, speedy access. It's the best of both worlds—analog speed and convenience plus distinctive digital sound quality. You also have two ADBSSR 6-parameter envelope generators for VCF and VCA respectively. 64 sound programs can be stored and instantly selected from internal memory. POLY and UNISON key assign modes can be included in programs. The Program up function can operated by foot switch (or other trigger signal), so you can change sounds without taking your fingers off the keys. Portamento, white noise, and stereo chorus effects are all included. MIDI is standard so you can control the DW-6000 from other MIDI equipment (even a personal computer) or vice versa. A fast tape interface lets you store any amount of program data on cassettes. DW-6000 MIDI DATA 1) Data types that can be sent and received: Note data (note on/note off) Program change, Pitch bend, OSC modulation, VCF modulation, Damper pedal, Portament switch, System exclusive message 2) Data that can be received but not sent: Channel mode messages, (OMNI on, OMNI off, all notes off) Volume What is DWGS (Digital Waveform Generator System) Korg's Digital Waveform Generator System was developed to overcome the difficulties that ordinary synths have when it comes to creating the attack characteristics of a piano, for example, or the intricate harmonic structures of gongs and other metallic sounds. DWGS uses eight digitally encoded waveforms having the complex harmonic structures required for professional music. These wave-forms are actually simulations of real musical instrument sounds (violin, acoustic piano, electric piano, saxophone, etc.) created by additive harmonic synthesis. These are stored in two 256Kbit ROM chips. You have two DWGS oscillators so you can mix different waveforms to create even more complicated and unusual sounds. What's more, the DW-6000 uses analog VCA and VCF modules so you retain the familiar convenience of conventional synths. You get fast, predictable results without the annoyance of typical digital systems. Sound synthesis on the DW-6000 is straightforward, following basic synthesizer theory of pitch, tone color, and volume parameters. You also have two 6-parameter (ADBSSR) digital envelope generators for sophisticated con-touring of tone color and dynamics. SPECIFICATIONS Keyboard: 61 keys (C—C) Voice: 6 Voice OSC 1: Octave (16', 8', 4'), Waveform (1—8), Level adjustment OSC 2: Octave (16', 8', 4'), Waveform (1—8), Level adjustment, Interval (Unison,Minor 3rd, Major 3rd, Perfect 4th, Perfect 5th), Detune (25 cents MAX) Noise : Level adjustment (White noise) VCF: Cutoff Frequency, Resonance, Keyboard Track (OFF, HALF, FULL) . EG Polarity, EG Intensity le Chorus' ON/OFF VCF EG. Attack time, Decay time, Break Point level, Slope time, Sustain level, Release time VCA EG : Attack time, Decay time, Break Point level, Slope time, Sustain level, Release time MG: Frequency, Delay time, OSC intensity, VCF intensity Bend : Maximum OSC Bend (~ 1 octave MAX), VCF Bend ON/OFF Portamento: Portament time MIDI: Receive Channel (ch 1—16), ENABLE (NOTE DATA/ ALL), OMNI (ON/OFF) Volume: Adjustable TUNE: 50 cents Joystick: X axis (OSC Bend, VCF Bend) +Y axis (OSC modulation) —Y axis (VCF modulation) Key assign mode: POLY 1, POLY 2, UNISON Programmer Value (edit slider, UP/DOWN switches), PROGRAM/PARAMETER switches, Number select buttons (1—8), WRITE switch, BANK HOLD switch Display: Program Number, Parameter Number, Parameter Value, Bank hold indicator Tape Interface: Save, Load, Verify, Cancel Input jacks: FROM TAPE (HIGH LOW), DAMPER PORTAMENTO, PROGRAM UP Output jacks: Output (R, L/MONO, HIGH/LOW), PHONES,TO TAPE •Tape switch: ENABLE/DISABLE Write switch: ENABLE/DISABLE MIDI jacks: IN, OUT, THRU Power supply: Local voltage Power consumption: 34W Weight: 9.3kg Dimensions: 998(W) x 338(D) x 101(H)mm Accessories: AC power cord, Connection cord. Data Cassette (*Programmable) OPTIONAL ACCESSORIES PEDAL SWITCH PS-1 HEADPHONES KH-1000 STAND ST-2B HARD CASE LIGHT BAG MIDI CABLE(7m/10m/12m) SOUND DATA TAPE TP-6000 |
|||||||||||||
| Prezzo di listino al pubblico anno 1985 da catalogo. | |||||||||||||
Prezzo: L. 2.139.000 |
|||||||||||||
|
|
|||||||||||||
|
|
|||||||||||||
| Sintetizzatore • KORG - DW 6000 Vintage Synthesizer | |||||||||||||
 |
|||||||||||||
|
|
|||||||||||||
